Description

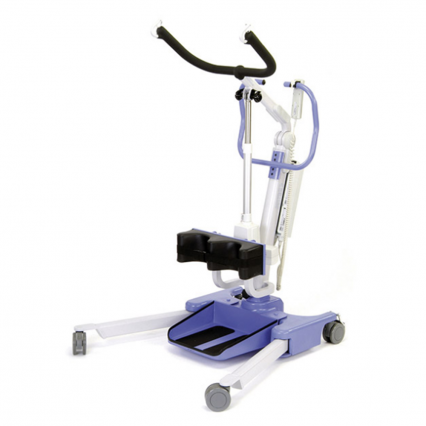

With its excellent range of movement, the Oxford Ascend can transfer a patient from a low-seated position to fully standing with ease. Its active lifting motion is designed to encourage user participation, promoting ongoing patient independence and well-being.
The Ascend gives the option of both a standing and a transport sling to help the carer perform a variety of tasks including; toileting, standing, point to point transfers, and walking and rehabilitation activity. The Ascend is compact and easy to operate which makes it easy to operate in confined spaces.
Features
- Safe working load 200kg
- SmartTM Monitor diagnostic and service controls as standard
- Powered leg positioning for excellent access around furniture
- Ergonomic design considerations and interaction points
Removable foot tray for walking/rehabilitation activity - Height adjustable knee pad
Specifications
- Safe Working Load 200 kgs
- Maximum Overall Length 1100 mm
- Minimum Overall Length 1000 mm
- Maximum Overall Height 1710 mm
- Minimum Overall Height 1070 mm
- Maximum Height to Attachment Point 1665 mm
- Minimum Height to Attachment Point 990 mm
- Turning Radius 1320 mm
- Legs Open – External Width 995 mm
- Legs Open – Internal Width 885 mm
- Legs Closed – External Width 630 mm
- Legs Closed – Internal Width 510 mm
- Overall Height of Legs 120 mm
- Ground Clearance 35 mm
- Front Twin Castors 100 mm
- Rear Braked Castors 100 mm
